Compressed Air Systems & Equipment
Explore our compressed air systems and auxiliary equipment.

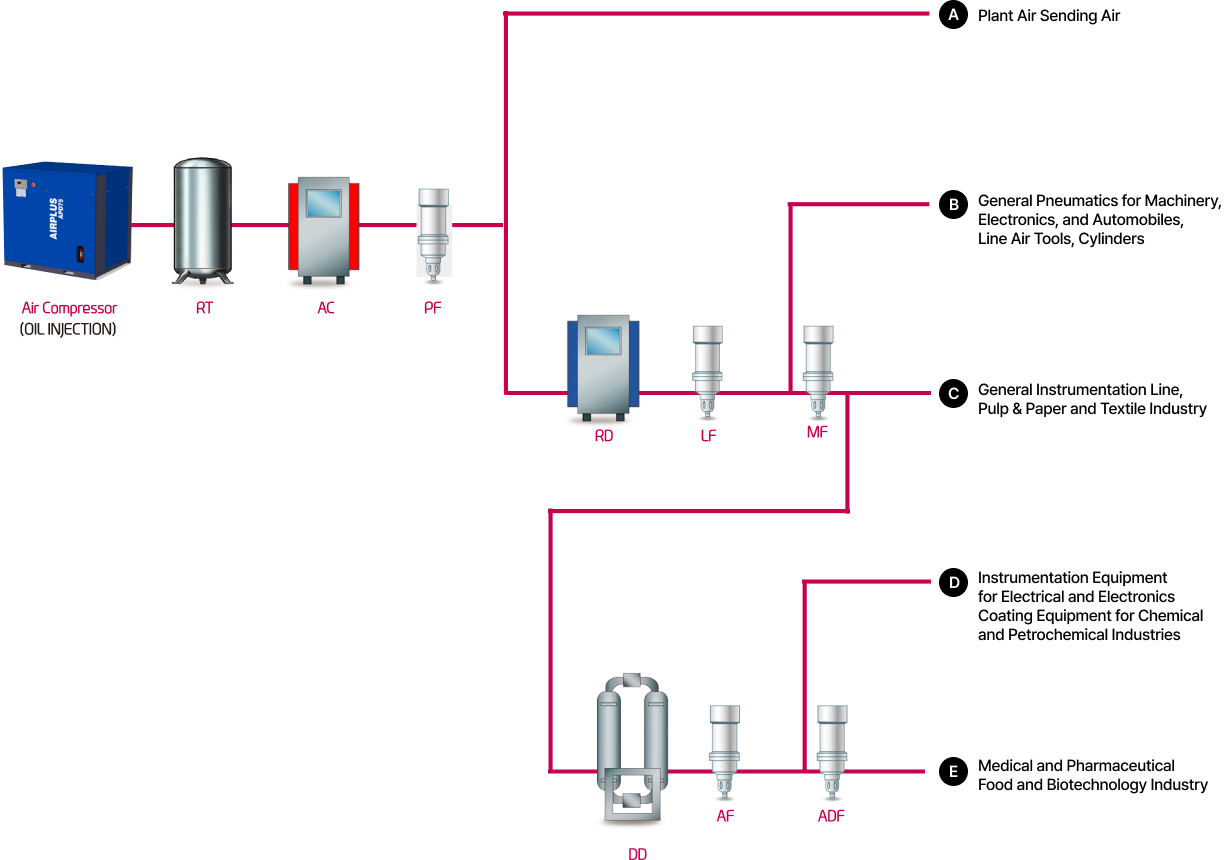

OIL INJECTION SYSTEM
- RT : Receiver Tank
- AC : After Cooler
- PF : Pre Filter
- RD : Refrigerated Air Dryer
- LF : Line Filter
- MF : Micro Filter
- DD : Desiccant Air Dryer
- AF : After Filter
- ADF : Adsorbent Filter
| Dew Point | Particle | Oil | |
|---|---|---|---|
| A | 20°C | 5µm | 30ppm |
| B | 4°C | 1µm | 1ppm |
| C | 4°C | 0.01µm | 0.1ppm |
| D | -40°C | 0.01µm | 0.03ppm |
| E | -40°C | 0.01µm | 0.003ppm |

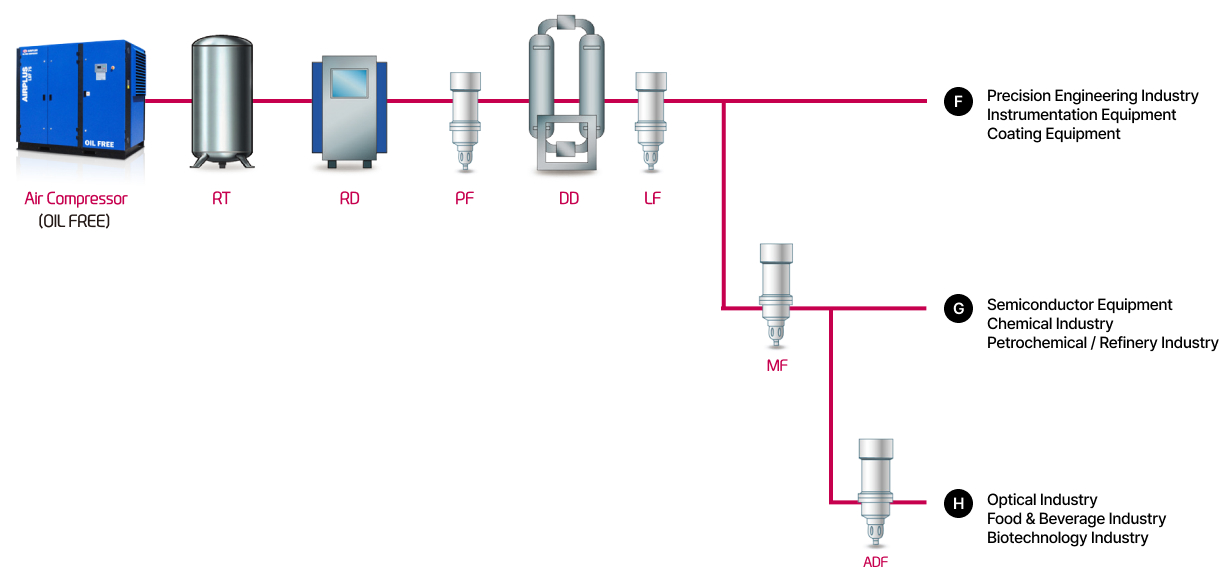

OIL FREE SYSTEM
- RT : Receiver Tank
- AC : After Cooler
- PF : Pre Filter
- RD : Refrigerated Air Dryer
- LF : Line Filter
- MF : Micro Filter
- DD : Desiccant Air Dryer
- AF : After Filter
- ADF : Adsorbent Filter
* Option Dryer 적용시
| Dew Point | Particle | Oil | |
|---|---|---|---|
| F | -40°C | 1µm | 0.03ppm |
| G | -40°C | 0.01µm | 0.01ppm |
| H | -70°C | 0.01µm | 0.003ppm |
